Y axis: 270°

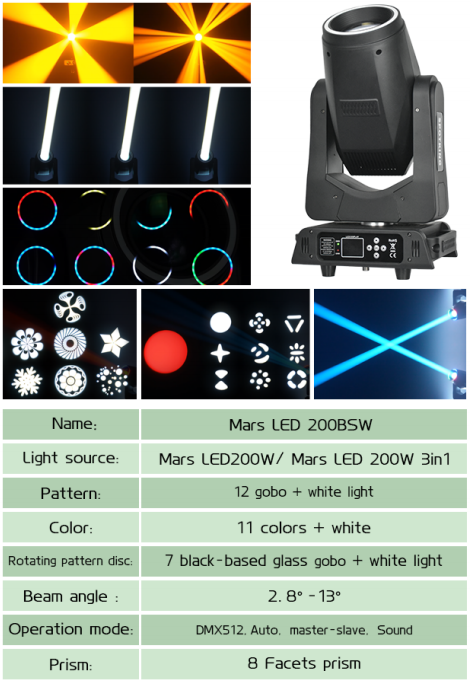

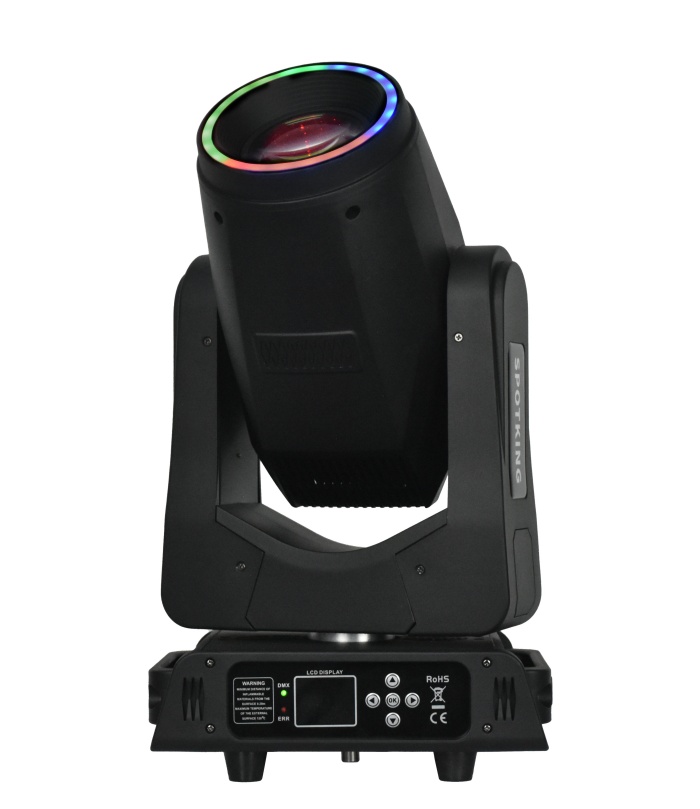

Model B:
Model No.: 3132
Input voltage: AC110V-240V 50/60Hz
Rated power: 350W
Light source: LED 200W
Beam angle: 2.8°
Lens: 80MM aperture
Color temperature: 8000K
Illumination: 5 meters, 27000+ Lux
Average lifespan: 50,000 hours
Strobe: 1-20Hz
Color disc: 11 colors + white light
Fixed pattern disc: 12 patterns + white light
Rotating pattern disc: 7 black-based glass patterns + white light
Colorful atomization: atomization
Prism: 5-sided
X-axis: 540° accuracy of 2.11° per step, with a fine adjustment accuracy of 0.008°
Y-axis: 220° accuracy of 1.05 degrees per step, with a fine adjustment accuracy of 0.004°
Operation mode: autonomous, voice control, master-slave, DMX
Control channel: 17CH
Protocol: Standard DMX512 protocol, RDM protocol

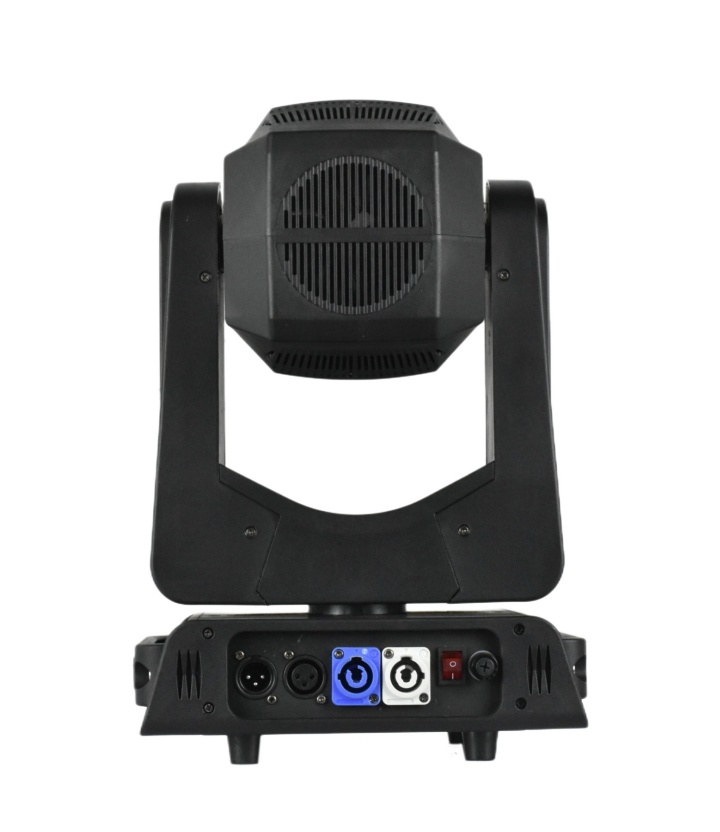

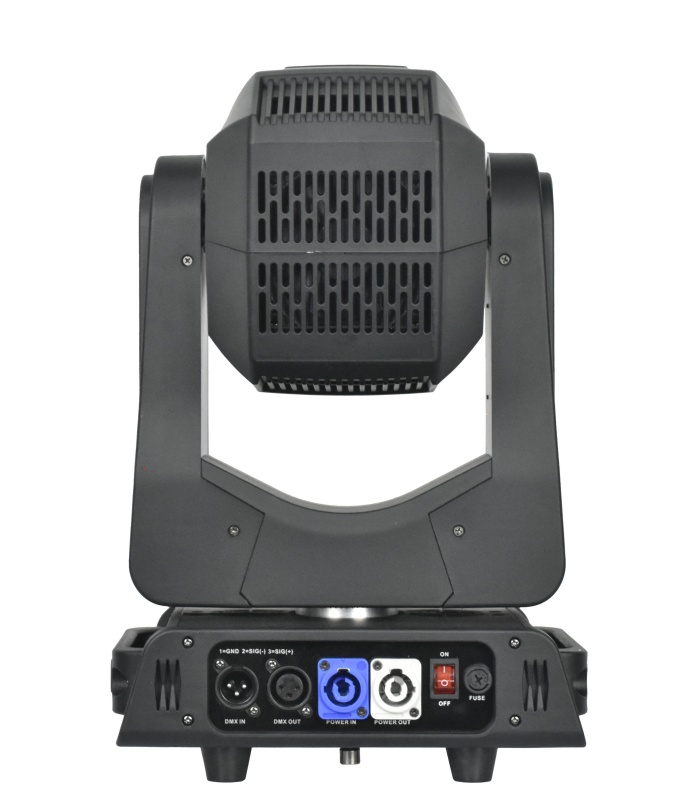

Data connection: Three-pin XLR input/output
Display: 1.8LCD liquid crystal display
Protection level: IP20
Working environment: -10℃ to +40℃
