| Model No. |
OLED55IN-3D |
| Diagonal size |
55inch（16:9） |
| Pixel arrangement |
RGBW rectangle |
| Surface treatment |
Hard coating (2H) |
| Support colors |
1.07B , 100% sRGB |
| Type |
OLED , AM-OLED |
| Display size |
1209.6 × 680.4 (H×V) mm |
| Product size |
1221.5 × 699.4 (H×V×D) mm |
| Resolution |
1920（H）×1080（V） |
| Color |
1.07B , 100% sRGB |
| Frame frequency |
120HZ |
| Display brightness |
320cd/m2(Typ.) |
| Contrast |
150000：1 |
| Visual angle |
60/60/60/60 (Min.)(CR≥10) |
| Transparency |
40% (Panel) |
| Screen Ratio |
16:09 |
| Light source lifespan |
30Khours |
| Light source type |
self-luminous, 30K hours |
| Touch screen |
No |
| Work Temperature |
0 ~ 50 °C ; Storage: -20 ~ 65 °C |
| Power |
12.0/24V (Typ.)(VDD/EVDD) |
| Response time |
8 (Typ.)(G to G) ms |
| Main Board CPU |
Android, I3/ I5/ I7 |
| SSD/ROM |
8G/120G SSD |
| USB connectors |
4 pcs |
| Speaker |
10Wx2 |
| RAM |
2G/4G/16G |
| Built-in wifi |
2.4GHz & 5GHz,IEEE 802.11 a/b/g/n/ac |
| Operating System |
WIN10 / Android/ Linux System available |

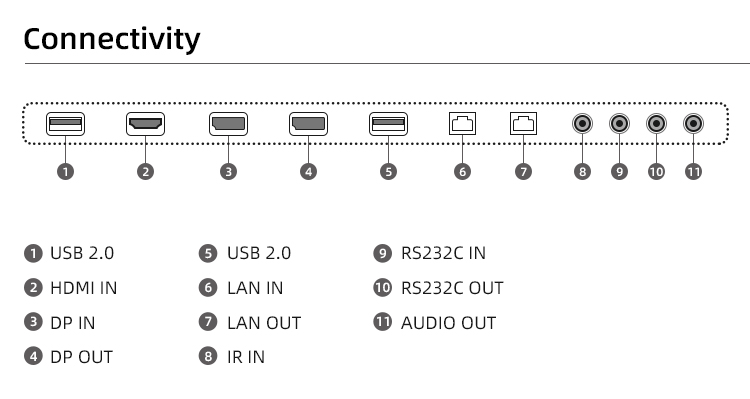

| Interface |
HDMI, DP In/Out, IR In(1) RJ45 In/Out(1), USB(2) RS232C In/Out(1).. |
| Desktop version size |
1272.4*260*846.8mm |
| Desktop version package size |
1420*350*1070mm |
| Flightcase G.W. |
82kg |

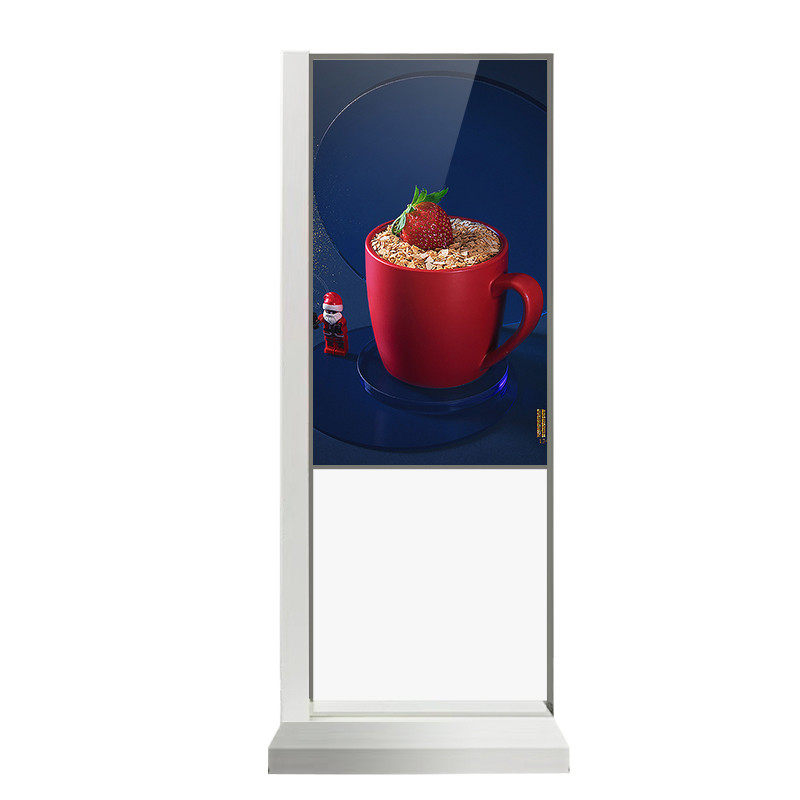

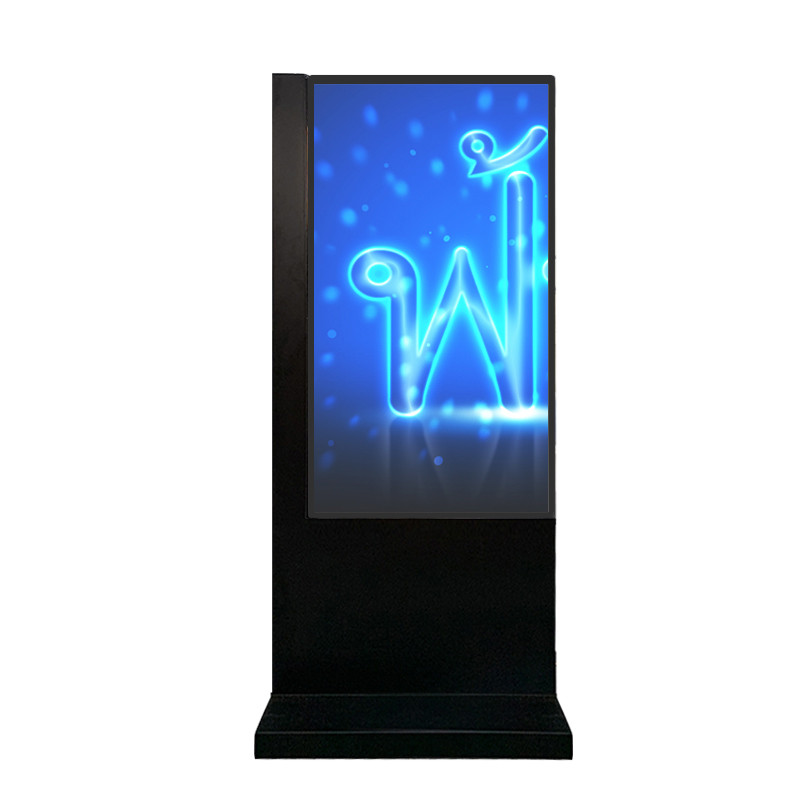

| Freestanding version size |
2100*400*700mm |
| Freestanding package size |
2220*530*1050mm |
| Flightcase G.W. |
135kg |

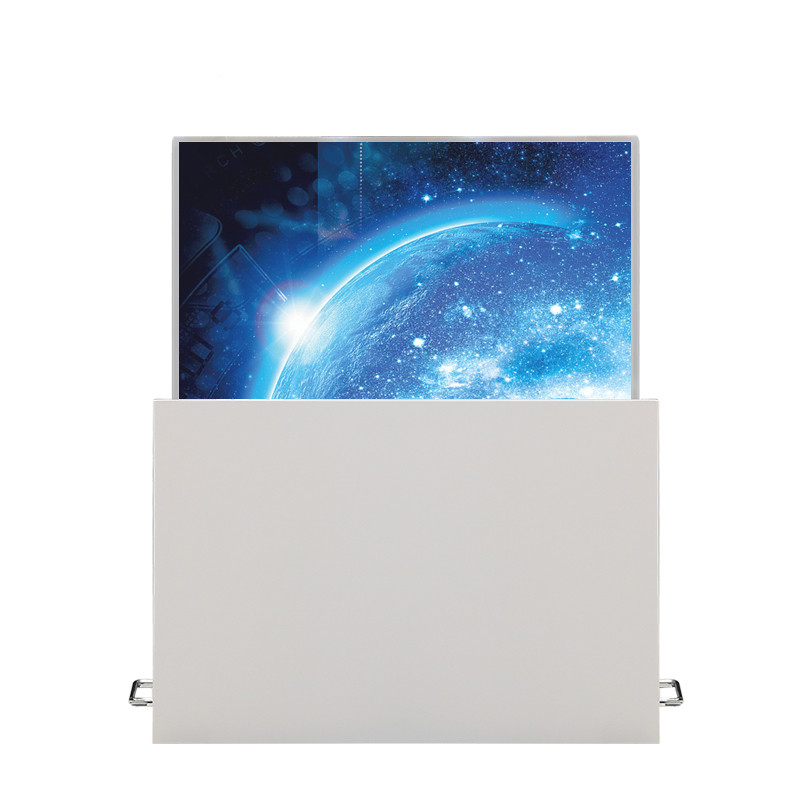

| Lift version Size |
1343*241.8*1000 |
| Lift versionPackage size |
1430*420*1280 |
| Flightcase G.W. |
153kg |

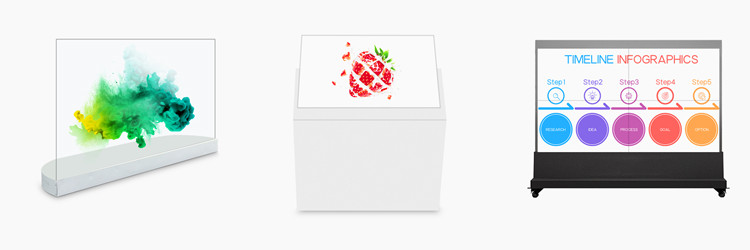

There are various designs available , pls contact our seller for more information:
(Kind Tip: Pls click this email sales808@sientist.ltd and write to us for catalogue and pricelist. You may also contact us via belowing APP or leave meassages at the bottom of this pages)
