Model no. |
MC320IV65-P2.5 |
MC384IV65-P3 |
MC500IV65-P3.91 |
|

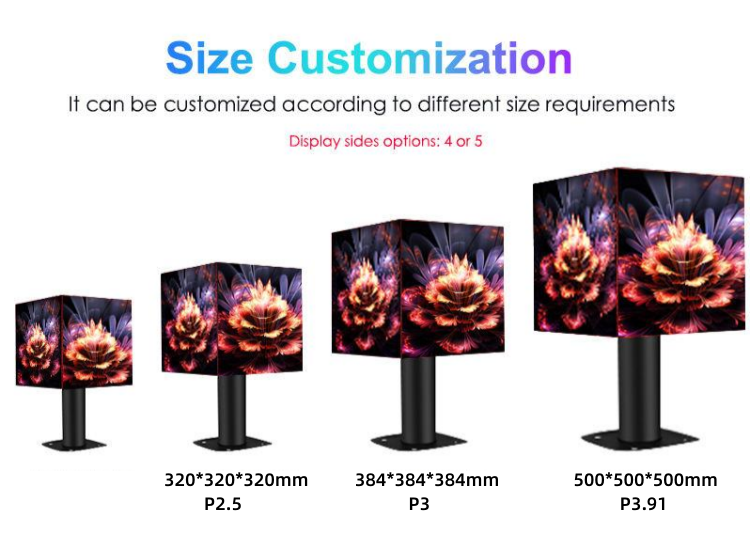

Product size |
320mm*320mm |
384*384mm |
500*500mm |
|
Module size |
320mm*160mm |
192mm*192mm |
500*500 mm |
|
Pixel pitch |
2.5mm |
3mm |
3.91mm |
|
Pixels density(each side) |
128*128 |
128*128 |
128*128 |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
|
Package mode |
SMD |
SMD |
SMD |
|
Brightness |
4000 |
4000 |
3000 |
|
Ave/Max. consumption |
200/300 |
200/300 |
300/600 |
|
Stock Temperature |
(-40℃~+85℃) |
(-40℃~+85℃) |
(-40℃~+85℃) |
|
Operating Temperature |
－10℃~+40℃ |
－10℃~+40℃ |
－10℃~+40℃ |
|
Operating Humidity |
10-90% RH |
10-90% RH |
10-90% RH |
|
Life Span |
100,000Hours |
100,000Hours |
100,000Hours |
|
MTBF |
≥50,000Hours |
≥50,000Hours |
≥50,000Hours |
|
Wood case size(mm) |
390mm*390mm*520 |
450*450*590 |
580*580*720 |
|
G.W.(kg) |
21 |
23 |
52 |
|
Model no. |
MC480IV65-P2.5 |
MC576IV65-P3 |
MC750IV65-P3.91 |
|
Product size |
480*480mm |
576*576mm |
750*750 |
|
Module size |
160mm*160mm |
192mm*192mm |
500*500 mm |
|
Pixel pitch |
2.5mm |
3mm |
3.91mm |
|
Pixels density(each side) |
192*192 |
192*192 |
192*192 |
|
Pixel configuration |
1R1G1B |
1R1G1B |
1R1G1B |
|
Package mode |
SMD |
SMD |
SMD |
|
Brightness |
4000 |
4000 |
3000 |
|
Ave/Max. consumption |
550/1200 |
550/1200 |
550/1200 |
|
Stock Temperature |
(-40℃~+85℃) |
(-40℃~+85℃) |
(-40℃~+85℃) |
|
Operating Temperature |
(-30℃~+50℃) |
(-30℃~+50℃) |
(-30℃~+50℃) |
|
Operating Humidity |
10-90% RH |
10-90% RH |
10-90% RH |
|
Life Span |
100,000Hours |
100,000Hours |
100,000Hours |
|
MTBF |
≥50,000Hours |
≥50,000Hours |
≥50,000Hours |
|
Wood case size(mm) |
570mm*570mm*710 |
640*640*890 |
836*836*1088 |
|
G.W.(kg) |
42 |
59 |
80 |
