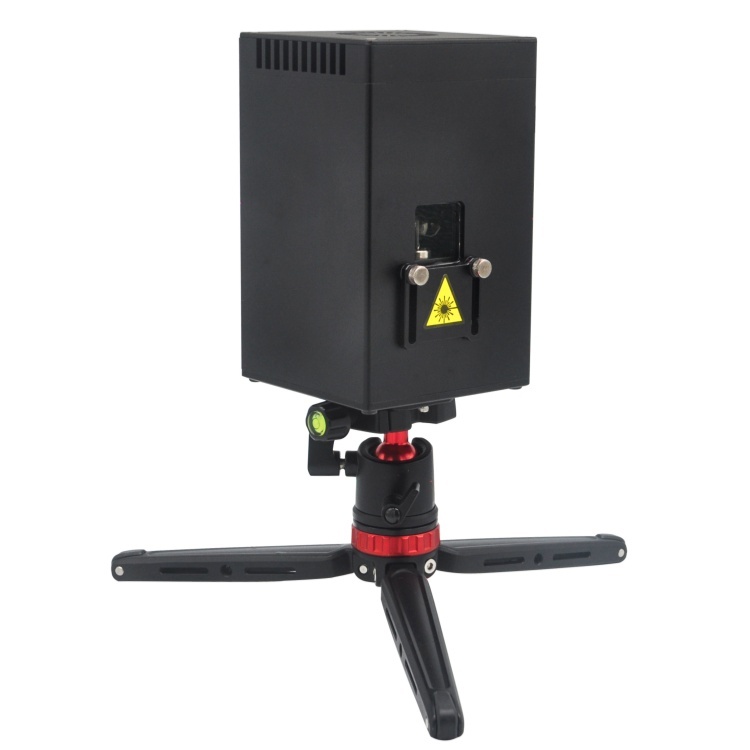

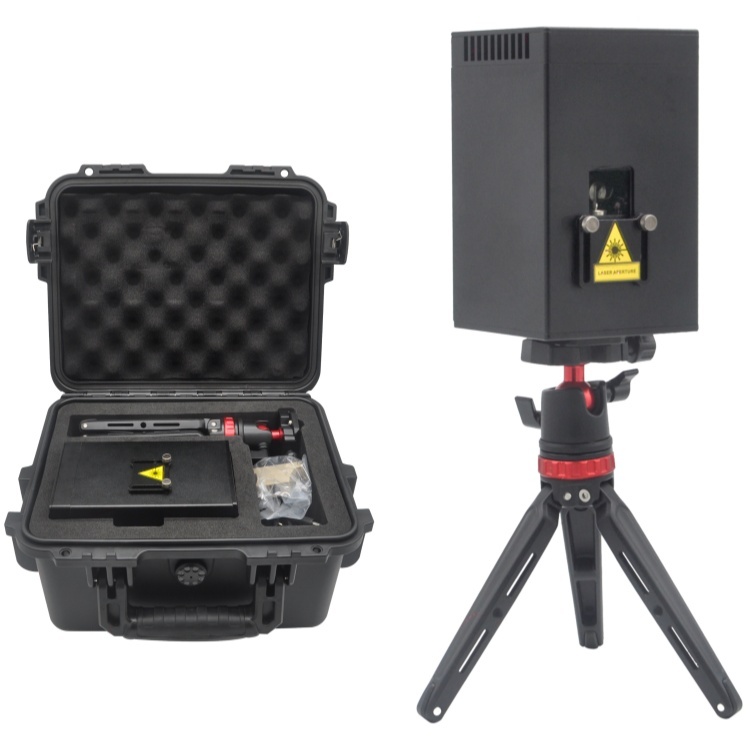

Portable Mini 3W Laser Light

3W RGB Portable WIFI Mini Laser

Features

1. Simple control and easy operation. With WIFI connection and APP laser software control, the operations of professional laser light become more simple and convenient. The application of laser lights is more powerful, such as being used as effect light, projection light, advertising light, entertainment light and other applications.

2. Professional APP laser control software (One Machine with Multi-function): Built-in colorful theme laser programs in various fields, powerful writing, drawing, text input, real-time display function and entertainment laser games.

3. High-speed signal transmission of WIFI, makes the laser animation effect more smoothly, realizing professional ILDA control effect.

4. High-power analog modulation laser, with professional laser level, small beam diameter and low divergence.

5. Low power consumption but high performance 25KPPS scanner (30KPPS is optional).

6. Two battery packs are reserved, and a single battery group can run for 2-3 hour, which is convenient to take for outdoor application

7. Mini compact design, small and light; dust-proof, reducing maintenance cost, long service life

8. Safety configuration: laser single point protection (SFS), laser key switch.

Technical Specification

1. AC/DC Adapter: AC100-240V Input and DC13.5V 5A Output, Max power consumption 50W ,50/60HZ

2. Laser module: RGB analog module, 3W laser power in total

Red laser 600mW@638nm; Green laser 900mW@525nm; Blue laser 1500mW@450nm
3. Beam Diameter<5.0mm,
4. Divergence<1.3mrad

5. Laser life: >10000 hours

6. Laser level: Class 4 laser

7. Waterproof Level: IP53

8. Scanner: low power consumption and high performance 25KPPS scanner (30KPPS is optional), max scanning angle is 50°.

9. Working Modes: WIFI ( APP), AUTO, ILDA(QS/BEYOND)

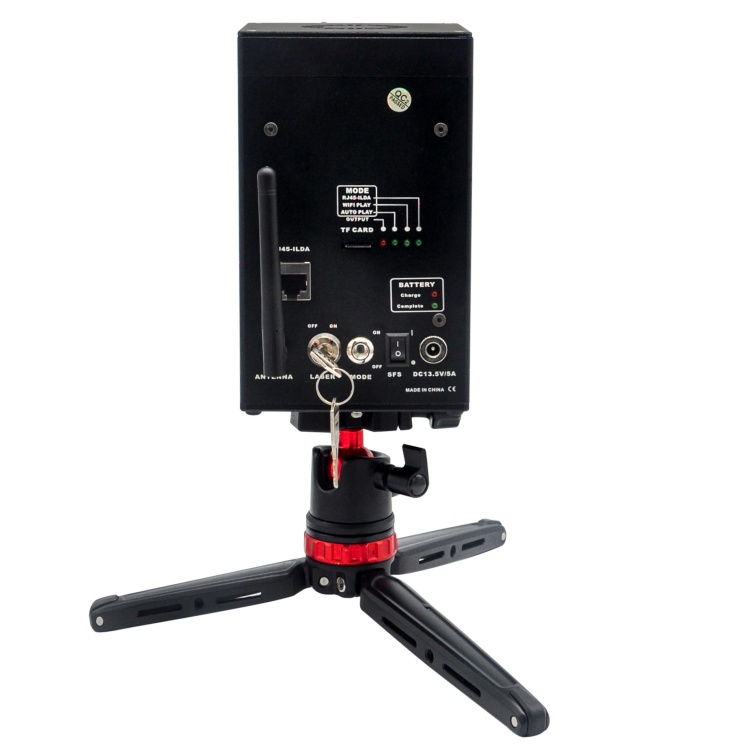

10. Interface: RJ45-ILDA interface for PC control (Part: DB25-TO-RJ45 interface)

11. Battery Packs: Lithium ion battery * 2 packs, each pack 18650 * 3 PCS, Voltage 12V,

Capacity 3400 mAh

12. Machine Dimension: 100(L)*100(W)*165(H)mm

13. Carton Dimension: 360(L)*290(W)*210(H)mm

14. Net Weight: 1.6Kg (Battery packs’ weight not included)

15. Gross Weight: 5.5Kg (Battery packs’ weight not included)
