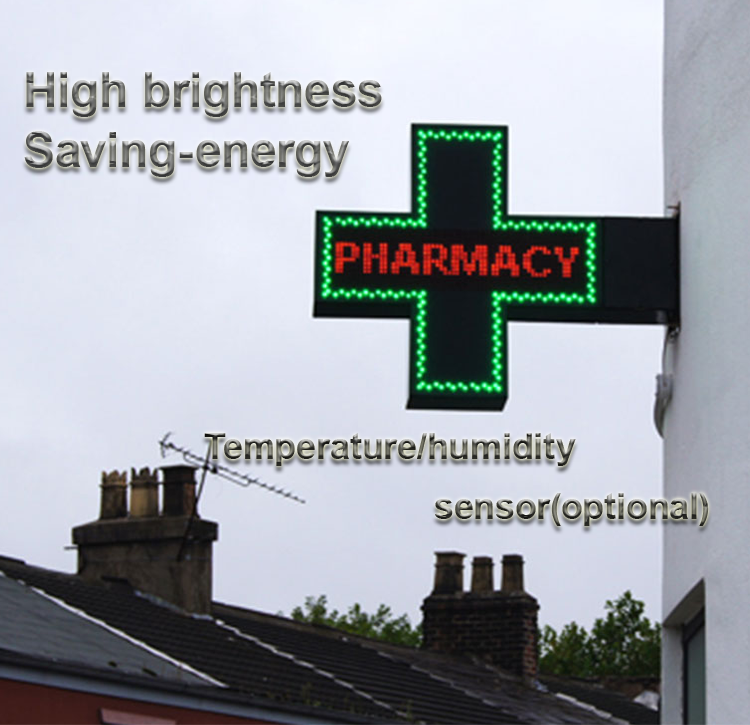

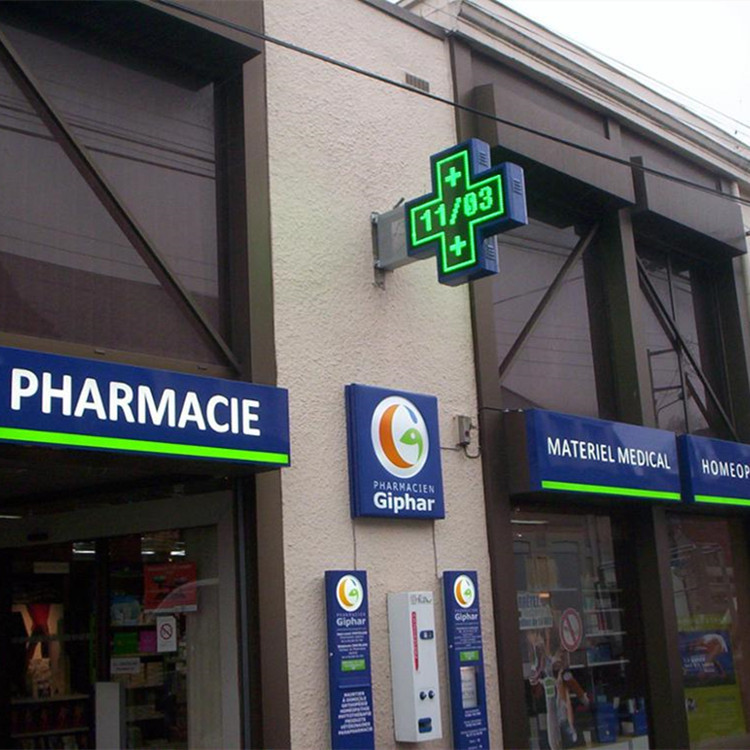

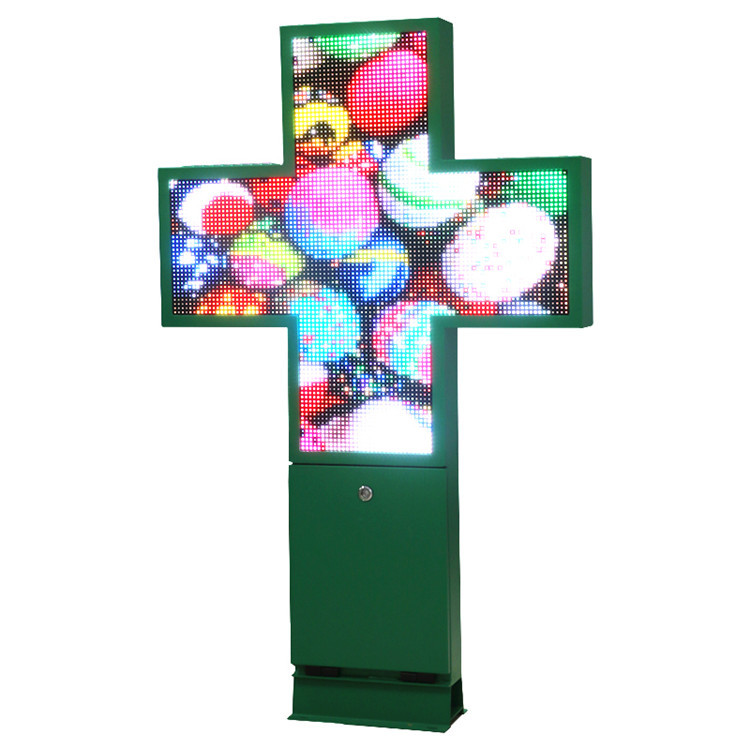

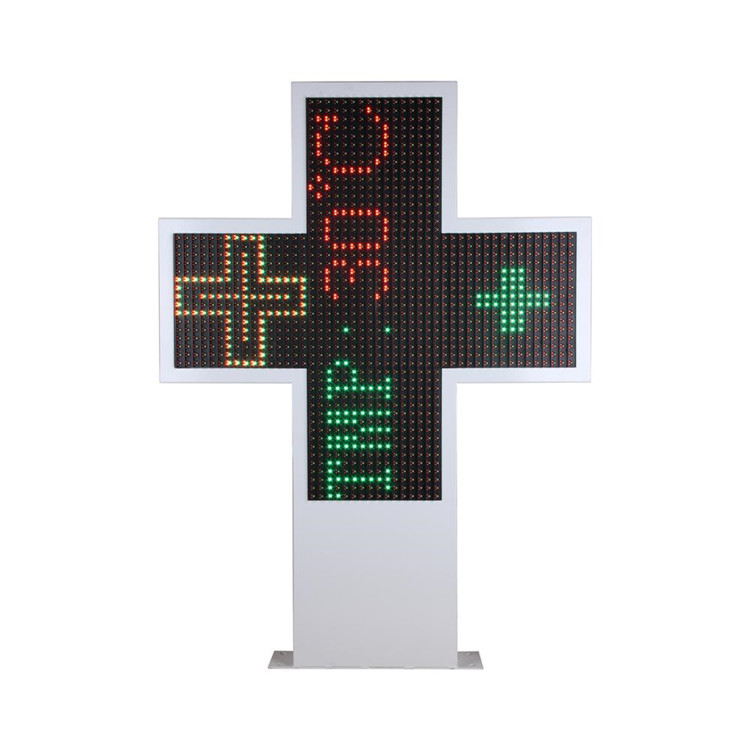

LED Cross Pharmacy Signage

Item No.: 00173
Description
Description







SMD High Brightness LED DIP Super Brightness LED
Type P6 double sides P8 double sides P16 double sides
Model no. LC768SMDP6RGB LC768SMDP8RGB LC768DIPP16G
Screen size 768*768mm 768*768mm 768*768mm
Resolution 128X128dots 96*96 dots 48*48dots
Net weight 28kg 26 kg 31 kg
Pixel Pitch 6mm 8mm 16mm
LED Type SMD 2727 SMD 3535 DIP 546
Module size 192*192mm 256*128mm 256*256mm
Color RGB RGB Green
Brightness 5500cd 6000cd 7000cd
Viewing Angle H 140°/120° H 140°/120° H 120°/70°
Scan  1/8  1/4  1/2
Input voltage AC 90-240V AC 90-240V AC 90-240V
Working Temp -20-80degree -20-80degree -20-80degree
Max consumption 900W 600W 300W
Average consumption 300W 200W 100W
Frame Frequency 60Hz 60Hz 60Hz
Re-flash >1920Hz >1920Hz >1920Hz
Defective Dots Rate <0.0001 <0.0001 <0.0001
Decay Rate ≤5%/year ≤5%/year ≤5%/year
MTBF ≥10000 hours ≥10000 hours ≥10000 hours
Lifespan ≥50000 hours ≥50000 hours ≥50000 hours
IP Grade IP65 IP65 IP65
Lifespan 100000hours 100000hours 100000hours

SMD High Brightness LED DIP Super Brightness LED
Type P5 double sides P10 double sides P10double sides P10 double sides P20 double sides
Model no. LC960SMDP5RGB LC960SMDP10RGB LC960DIPP10RGB LC960DIPP10G LC960DIPP20G
Screen size 960*960mm 960*960mm 960*960mm 960*960mm 960*960mm
Resolution 192X192dots 96*96 dots 96X96 dots 96X96dots 48*48dots
Net weight 32kg 32 kg 40kg 38kg 40 kg
Pixel Pitch 5mm 10mm 10mm 10mm 20mm
LED Type SMD2727 SMD 3535 DIP 346 DIP 546 DIP 546
Module size 160*160mm 320*160mm 320*160mm 320*160mm 320*160mm
Color RGB RGB RGB Green Green
Brightness 5500cd 4500cd 8500cd 7000cd 7000cd
Viewing Angle H 140°/120° H 120°/70° H 120°/70° H 120°/70°
Scan  1/8  1/4  1/4  1/2  1/1
Input voltage AC 90-240V AC 90-240V AC 90-240V AC 90-240V AC 90-240V
Working Temp -20-80degree -20-80degree -20-80degree -20-80degree -20-80degree
Max consumption 1200W 600W 600W 600W 400W
Average consumption 350W 200W 200W 200W 120W
Frequency 60Hz 60Hz 60Hz 60Hz 60Hz
Re-flash >1920Hz >1920Hz >1920Hz >1920Hz >1920Hz
Defective Dots Rate <0.0001 <0.0001 <0.0001 <0.0001 <0.0001
Decay Rate ≤5%/year ≤5%/year ≤5%/year ≤5%/year ≤5%/year
MTBF ≥10000 hours ≥10000 hours ≥10000 hours ≥10000 hours ≥10000 hours
Lifespan ≥50000 hours ≥50000 hours ≥50000 hours ≥50000 hours ≥50000 hours
IP Grade IP65 IP65 IP65 IP65 IP65
Lifespan 100000hours 100000hours 100000hours 100000hours 100000hours

The belowing screen sizes also available: 480*480mm/576*576mm/640*640mm/1024*1024mm/1152*1152mm/1280*1280mm/1536*1536mm/1920*1920mm
Pls contact our seller for technical data if you may need LED Cross at these sizes.

(Kind Tip: Pls click this email   [email protected]   and write to us for catalogue and pricelist. You may also contact us via belowing APP or leave meassages at the bottom of this page)
