Outdoor LED Transparent Screen Display

Item No.: 00171
Description
Description

Outdoor IP65 Waterproof Transparent LED Screen Display

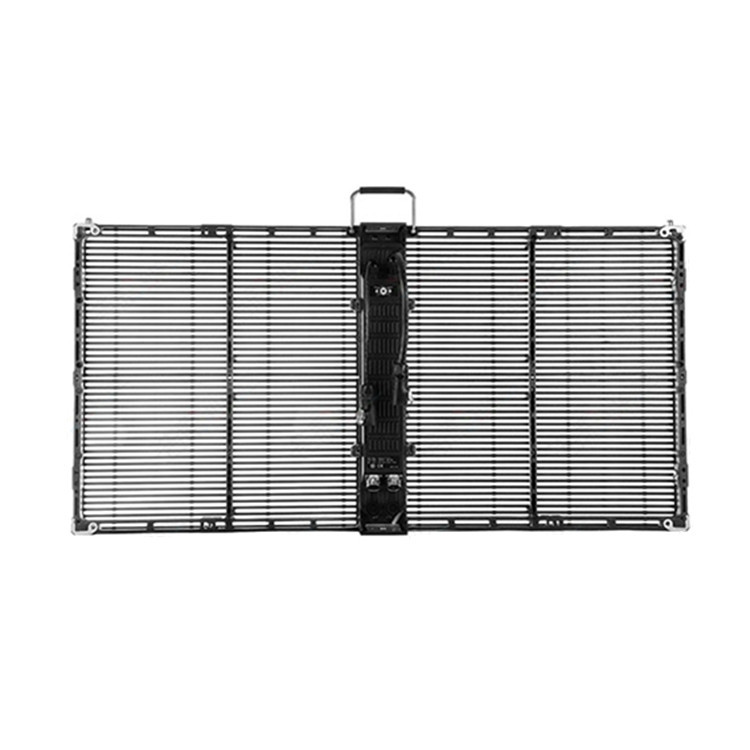

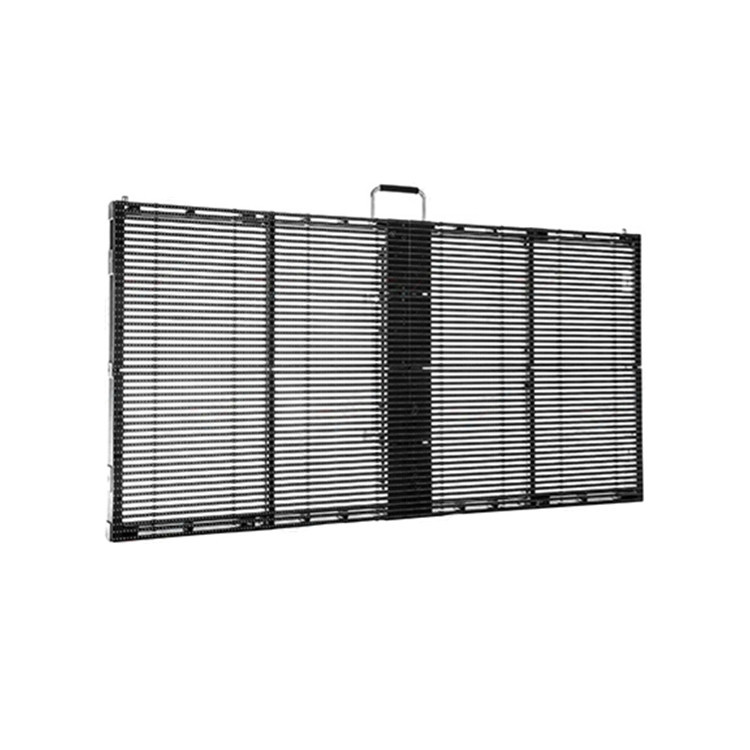

1. Die casting cabinet, slim, strong and seamless assembling.

2. High transparent rate, the highest can reach 71%.

3. Slim cabinet, space saving; light weight, no need to change architectural structure, adapt to different installation place.

4. Environmental Projection: no need air-con; Winds can go through the screen, low wind drag.

5. Easy maintenance: fast replaced module, support front and rear service.

6. Stacking, hanging and fixed installation are supported.

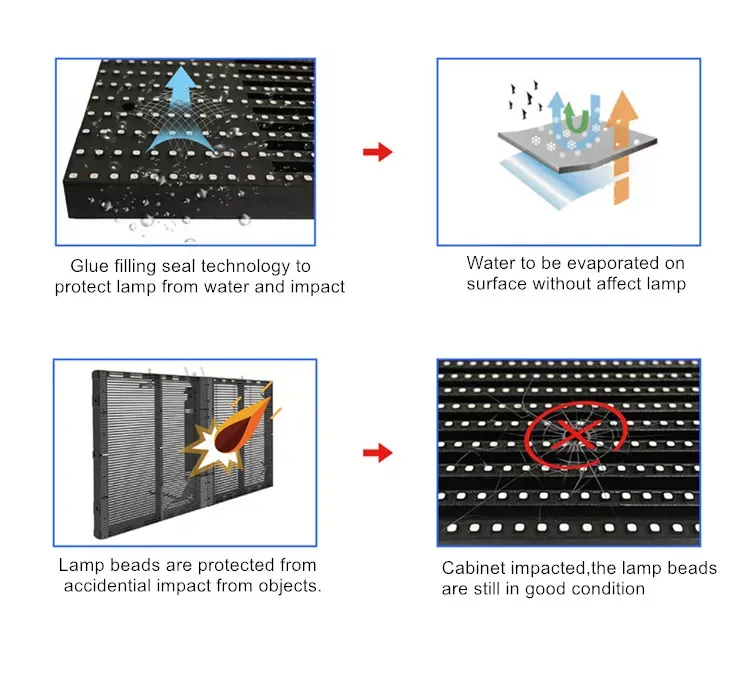

7. The lamp & PCB are fully sealed by silicon, anti-dust and anti-collision, IP65, adapt to harsh weather.



LED Parameter
No. Types Brightness Viewing AngleH/V Wavelength
1 Red LED 40~60mcd 120º±5º 618-625nm
2 Green LED 110~180 mcd 120º±5º 510-530nm
3 Blue LED 20~45 mcd 120º±5º 460-475nm


Transparent Screen Parameter
Model No. P3.91S8IP65 P5.2S4IP65 P10.4S2IP65
1 LED Configuration SMD1921 SMD1921 SMD1921
2 Pixel Pitch Horizontal 3.91mm, Vertical 7.81 mm Horizontal 5.2mm, Vertical 10.4 mm Horizontal 10.4mm, Vertical 10.4 mm
3 Density 32768 dots/ 18432 dots/ 18432 dots/
4 Transparency ≥55 ≥60 ≥60
5 Driving Mode 8scans 4scans 2scans
6 Refresh Rate ≥3840 HZ ≥3840 HZ ≥3840 HZ
7 Brightness 4500cd/ 4500cd/ 4500cd/
8 View Angle H160°, V110° H160°, V110° H160°, V110°
9 Minimum View Distance ≥4m ≥5m ≥5m
10 Grey Scale 16 bit 16 bit 16 bit
11 Frame Frequency 60 fps 60 fps 60 fps
12 Module Size 500*250mm 500*250mm 500*250mm
13 Module Resolution 128*32 dots 96*24 dots 96*48dots
14 Module Quantity 4 pcs/cabinet 4 pcs/cabinet 4 pcs/cabinet
15 Cabinet Size (WXH) W1000*H500*80mm W1000*H500*80mm W1000*H500*80mm
16 Cabinet Resolution 256*64 dots 192.48 dots 192.48 dots
17 Cabinet Weight 7.5kgs 7.5kgs 7.5kgs
18 Material Die-cast Aluminum  Die-cast Aluminum  Die-cast Aluminum
19 Input Voltage AC 86-264V/60Hz AC 86-264V/60Hz AC 86-264V/60Hz
20 Power ConsumptionMax/Ave. 800/290W/ 800/280W/ 800/260W/
21 Screen Weight 15kg/ 15kg/ 15kg/
22 MTBF >10,000 hrs >10,000 hrs >10,000 hrs
23 Lifespan ≥100,000 hrs ≥100,000 hrs ≥100,000 hrs
24 IP Protection Level IP65 IP65 IP65
25 Working Temperature 20℃~+60 20℃~+60 20℃~+60
26 Humidity 10%-85%RH 10%-85%RH 10%-85%RH
27 Driving IC ICN2153 PWM MY9866 MY9866
28 Display Interface Terminal DIV/HDMI Terminal DIV/HDMI Terminal DIV/HDMI
29 Installation Mode hanging or fixing optional hanging or fixing optional hanging or fixing optional
